Lewis Ultra-light Flat-mount Integrated Caliper R2

Lewis Ultra-light Flat-mount Integrated Caliper R2


Extreme lightweight design, integrated caliper

High-precision CNC machinine Cut from 7075 T6 Aluminum bar stock

2 x 21mm-piston-design for strong braking power

Brake mount: flat mount

FM size is 34mm

Oil: Mineral oil or DOT 5.1 Fluid

Weight: 67g (without brake pads and fitting)


The R2 caliper adopts an integrally formed caliper frame, delivering excellent rigidity and structural strength.With the one-piece molded frame design, the R2 caliper allows more material removal through machining, achieving an ultra-lightweight advantage while maintaining identical braking performance.


More Information, check the specification below.


Suggested Retail Price:

US$195.00 / piece, Tax Excluded


Worldwide Dealers Wanted

For purchasing more matching brakes, please click on "Inquire now" to leave us a message.

Inquire now
Add to cart
Share To:
Technology
  • DOT & Mineral Oil
    DOT & Mineral Oil

    Compatible with different braking systems, available in DOT and mineral oil versions

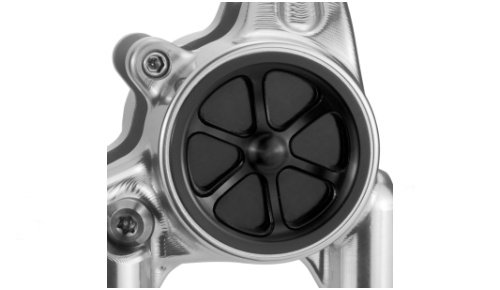

  • 2 x 21mm Large Caliper Pistons
    2 x 21mm Large Caliper Pistons

    21mm large caliber double piston, strong braking force.

    Optimize the overall design of the caliper, increase the thickness of the inner wall of the caliper, higher strength, adapt to high-intensity environment.

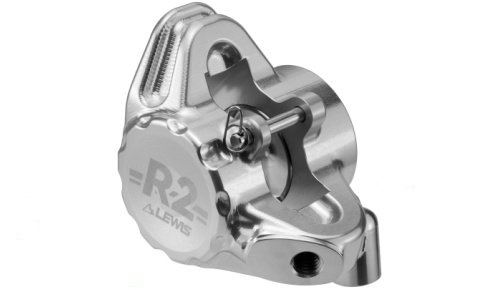

  • Integrally Molded Caliper
    Integrally Molded Caliper

    The R2 caliper features an integrally molded caliper frame with outstanding rigidity and strength.

SPECIFICATIONS
Item NameUltra-light Flat-mount Integrated Caliper R2
MaterialCNC Machine Cut 7075 T6 Aluminum
Flat Mounting Distance34mm
Oil TypeMineral Oil or DOT Fluid Available


Piston2 x 21mm Stainless steel Pistons, Stainless steel Hardwares


Weight

(without brake pads and fitting)

67g
Colors: Black, Silver, Pink, Orange, Purple


Torque for Stainless steel oil hose fitting

Oil hose fiting to Oil hose Torque: 5N·m

Oil hose fitting intalled to Caliper Torque: 2.3N·m


Torque for Aluminum oil hose fitting

Oil hose fiting to Oil hose Torque: 4.5N·m

Oil hose fitting intalled to Caliper Torque: 2N·m
