Road Bike
Lewis Flat Mount Road Bike Caliper BB2-SS/BB2-Ti
2 x 21mm-piston-design for strong braking power
Brake mount: flat mount
FM size is 34mm
Oil: Mineral oil or DOT 5.1 Fluid
High-precision CNC machinine Cut from 7075 T6 Aluminum bar stock
BB2-SS weight: 96.4g (with brake pads)
BB2-Ti weight: 83.8g (with brake pads)
Increase the thickness of the inner wall of the caliper, high strength, adapt to high-intensity environment
Large piston floating clearance for better compatibility with most brake levers, reducing compatibility issues due to caliper replacement.
Multiple colors available: Silver, Black, Purple, Gold, Orange and Camo
Suggested Retail Price:
BB2-SS : US$84.50 / piece, Tax Excluded
BB2-Ti: US$104.50 / piece, Tax Excluded
-
Technology
-
Specification
-
Service
-
Tuning & Spare Parts
-

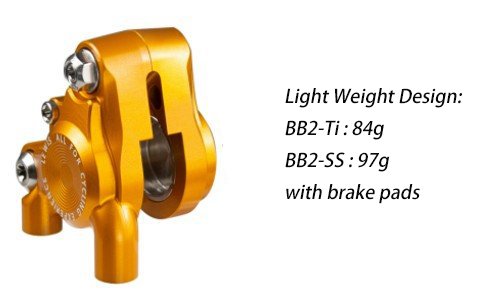

Competition Level Lightweight DesignBB2-Ti: 84g
BB2-SS: 97g
with Brake Pads
-
CNC Machined 7075 T6 Aluminum7075 T6 Aluminum, CNC high precision cutting, high strength. In the high-pressure environment of the oil circuit, the caliper deformation is small and the brake performance is more stable.
-

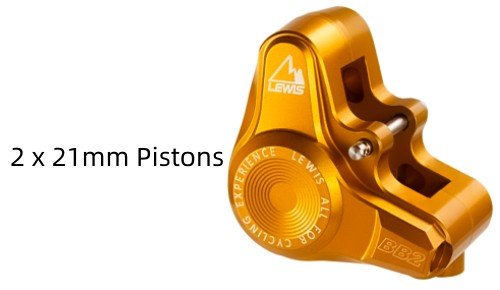

2 x 21mm Large Caliper Pistons21mm large caliber double piston, strong braking force.
Optimize the overall design of the caliper, increase the thickness of the inner wall of the caliper, higher strength, adapt to high-intensity environment.
-

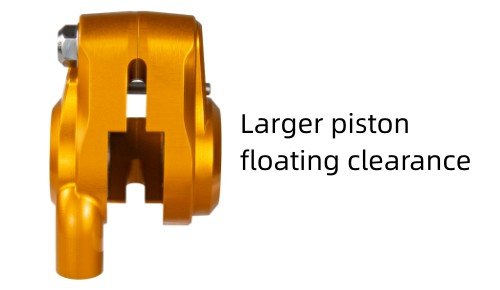

Larger piston floating clearanceWider Caliper Clearance Designed for Racing.
The piston floating clearance is 0.3 mm per side, with a large adjustment margin, which effectively reduces rotor rubbing and makes installation and adjustment easier.
-

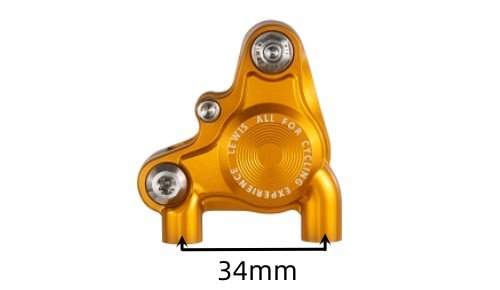

34mm Flat Mount Mounting Hole DistanceFM Specifications: 34mm mounting Hole Distance
Please carefully compare the installed vehicles for support.
-
BB2-Ti Titanium HardwareBB2 with Titanium hardware weighs only 84g.
Ultimate lightweight design.
| Item Name | Flat Mount Road Bike Caliper BB2-SS / BB2-Ti |
| Material | CNC Machine Cut 7075 T6 Aluminum |
| Flat Mounting Distance | 34mm |
| Oil Type | Mineral Oil or DOT Fluid Available |
| BB2-SS: | 2 x 21mm Stainless steel Pistons, Stainless steel Hardwares |
| BB2-SS Weight | 96.4grams |
| BB2-Ti: | 2 x 21mm Titanium Pistons, Titanium Hardwares |
| BB2-Ti Weight | 83.8grams |
