Lewis AX 18+20mm 4 Pistons Brakes Triple Adjustments

Downhill & Enduro

Material: 7075 T6 Aluminum

Piston: 4 pistons (2x18mm, 2x 20mm)

Mineral Oil

Three Adjustments For LEVER REACH & BITE POINT & LEVERAGE RATIO

Tool-Free for LEVER REACH & BITE POINT

Independent cooling fins design for better high temperature performance

New Upgraded Anti-oil loss system connector

Upgraded leverage ratio adjustment knob

Single brake weight: 311g (without oil hose and brake pads)

Single brake lever: 109g

Single caliper: 202g (without brake pads)

Retail Price(Black/Silver): US$579 per set (Front +Rear Brakes)，Tax Excluded

Worldwide Dealers Wanted

For purchasing more matching brakes, please click on "Inquire now" to leave us a message.

Inquire now

Add to cart

Share To:

Technology

Lever Reach Adjustment Knob

By rotating the lever reach adjustment knob, you can adjust the distance between the brake lever and the handlebar.

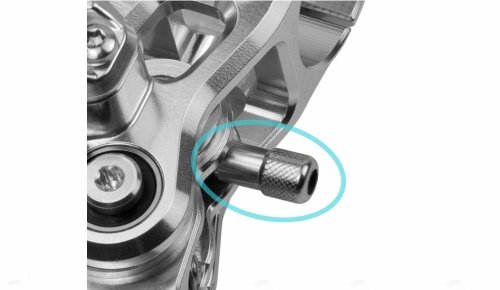

Bite point Adjustment Knob

Without using any tools, you can adjust the brake lever free play by turning the adjustment knob.

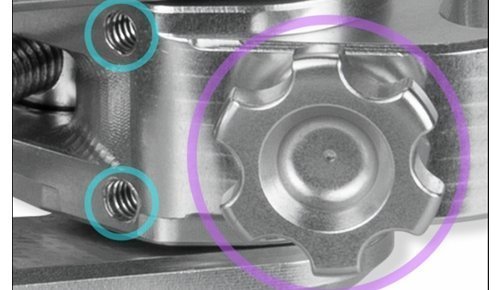

Leverage Ratio Adjustment

Loosen the lever ratio set screws and adjust the Lever ratio by turning the lever ratio adjustment knob.

Tighten the set screws after adjustments.

Turn the lever ratio adjustment knob to adjust the brake lever ratio to get a braking feel that suits you.
Stainless steel Pistons with Insulation Layers

4x 17mm Stainless steel Pistons with Insulation Layers

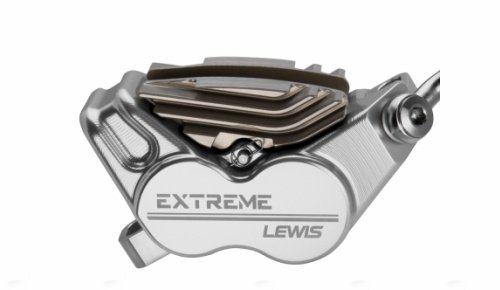

Independent Cooling Fins

Cooling Fins for better heat dissipation performance

SPECIFICATIONS

MASTER CYLINDER
Type	Axial
Material	CNC 7075T6 Aluminum
Body Finish	Black, Silver
Clamp Color	Black, Silver
Clamp Type	Split
Screws	Stainless Steel
Adjustable Lever Reach	YES, Tool Free
Adjustable Pad Bite Point	YES, Tool Free
Adjustable Leverage Ratio	1.5mm Allen Key to loosen the Two set screws first

LEVER BLADE
Material	CNC 7075 T6 Aluminum
Color	Black, Silver
Brake lever version	1 Finger

CALIPER
Material	CNC 7075T6 Aluminum
Color	Black, Silver
MOUNT TYPE	Post mount
Piston	2x18mm, 2x20mm Stainless steel Pistons
Screws	Stainless Steel
Pads type	Sintered EP-44 and Carbon Ceramic VP-40

Hose
Hose size	Outside Diameter 5mm，Bore 2.2mm
Hose length	90cm front /160 cm rear
Hose finish	Black, Braided T200 Oil Hose
INTENDED USE	Downhill, Enduro, All-Mountain
Rotors	Not included, optional (180 mm\|200mm \| 203 mm\|220mm \| 223 mm) Recommending Lewis 2.3mm rotors or other brands of 2.0mm -2.5mm thick rotors
Adapter	Not included
WEIGHT	Lever 109g, Caliper 202g (wihtout brake pads)
Oil	Mineral oil
Bleed Kit Recommendation	Lewis Bleeding Kit
