Lewis EP8+ Axial Cylinder 8 Pistons Hydraulic Disc Brake for Surron Light Bee

EP8+ with Lever Reach and Leverage Ratio Adjustment System adapts to different preferences for brake.

Tailored for electric off-road motorcycles, such as Surron Light Bee, with a larger oil capacity to mitigate changes in feel due to wear.

Constructed from aerospace-grade 7075 aluminum alloy, CNC precision-cut to achieve high strength with a lightweight design.

Ultimate 8-piston, powerful braking performance, no more brake anxiety.

Independent cooling fins design for better high temperature performance.

Up to four precision bearings constitute each brake lever pivot, providing riders with an unparalleled braking experience characterized by stability and smoothness.

Fluid: DOT 5.1 (Large oil reservoir design)

Weight: Cylinder 149g, Caliper 307g

Piston: 8 pistons (4x14mm+4x17mm)

Rear Brake weight = 615g(Oil Hose included), 456g without Oil Hose

Adapters for Lightbee = 305g



Retail Price: US$584.5 per set (Rear Brake), Tax Excluded



Worldwide Distributors Wanted


Inquire now
Add to cart
Share To:
Technology
  • Lever Reach Adjustment
    Lever Reach Adjustment

    Use a 2mm Allen Key to customize Lever reach.

  • Leverage Ratio Adjustment
    Leverage Ratio Adjustment

    Loosen the Leverage Ratio Fixed Screw and fine-tune the brake feel by turning the Lever Ratio Adjustment Knob.

  • Independent Cooling Fin Design
    Independent Cooling Fin Design

    Independent cooling fin design enhances high-temperature performance.

  • Large-volume oil Reservior
    Large-volume oil Reservior

    Large-volume oil reservior, reduces maintenance frequency.Utilizes DOT 5.1 brake fluid for superior high-temperature performance.

  • Stainless steel Pistons with insulation layers
    Stainless steel Pistons with insulation layers

    Stainless steel Pistons with insulation layers to manage high temperature

  • 5-Bolts Caliper Fixation
    5-Bolts Caliper Fixation

    5-Bolts caliper fixation ensures stability in demanding scenarios.

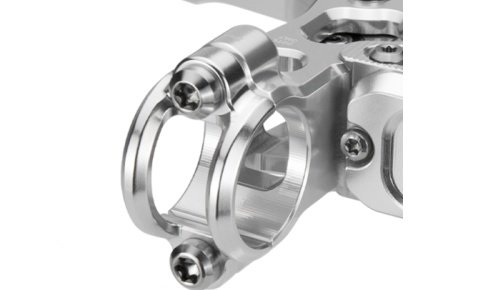

  • Split Clamp Design
    Split Clamp Design

    New clamp design ensures higher strength and easier installation.

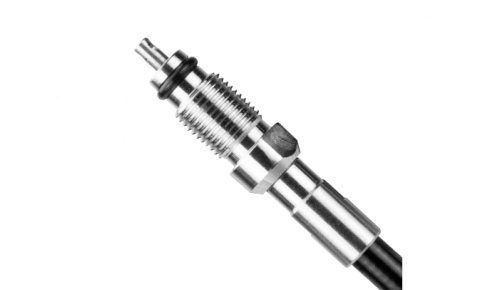

  • Anti-Leak Oil System
    Anti-Leak Oil System

    Anti-Leak Oil System

  • Ambidextrous Brake Lever
    Ambidextrous Brake Lever

    Left and right-hand universal design accommodates different brake installation preferences.

SPECIFICATIONS
MASTER CYLINDER
TypeAxial
Material CNC 7075T6 Aluminum
ColorBlack, Silver
Clamp Type Split
ScrewsStainless Steel
LEVER RATIO ADJUSTMENT SYSTEMYES, Tool Free
LEVER REACH ADJUSTMENTYes, with a provided 2mm Allen key


LEVER BLADE
Material CNC 7075 T6 Aluminum
Color Black, Silver


CALIPER
Material CNC 7075 T6 Aluminum
Color Black, Silver, Black & Silver, customized colors
MOUNT TYPEPost mount
Piston 4 x 17mm+4x14mm Stainless Steel + Insulation Layers
ScrewsStainless steel
Brake Pads Metallic EP-37


Hose K28 Black braided Oil hose
Hose size Outside Diameter 5mm,Bore 2.2mm
Hose length 165 cm rear
Hose finish Black, Braided
INTENDED USE

Surron Light Bee E-motorcycle

Rotors HD220-54 : 3mmx220mm Rotor (Aperture: 54mm)

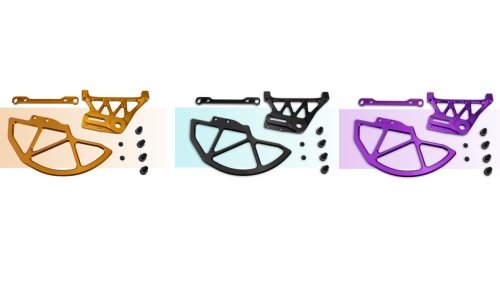

Adapter & Rotor GuardIncluded
WEIGHTMaster Cylinder 149g, Caliper 307g
OilDOT 5.1(Large oil reservoir design)
Bleed Kit RecommendationEZMTB 2022std
