Lever reach
Tool-free adjustment puts the blade exactly where your index finger expects it.
Downhill / Enduro / All-Mountain

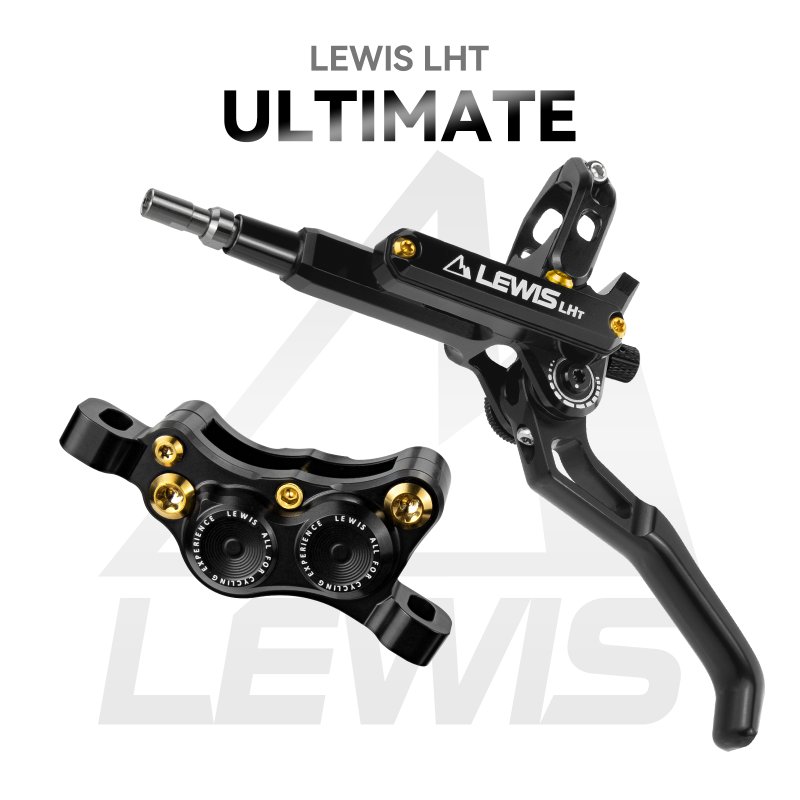

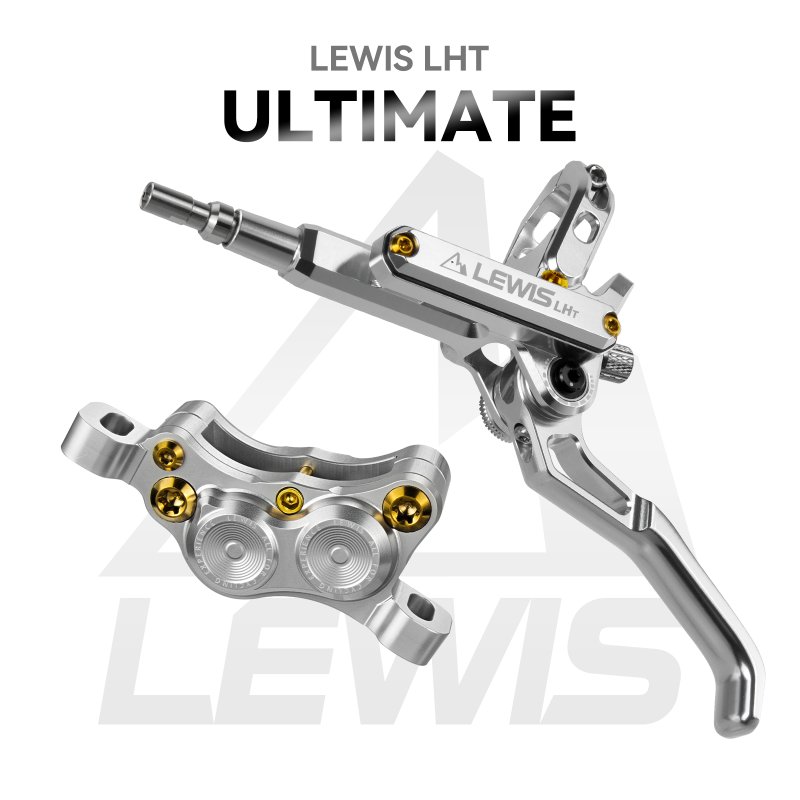

LHTUltimate
Ultra-light lever action. Immense, predictable power. The Lewis flagship is machined for riders who want every variable under control.
US$509Front + rear set · tax excluded
Inquire now
4 × 17 mmTitanium + ceramic pistons
3-wayIndependent adjustment
639 gComplete front + rear set
Patented adjustment
Your hand. Your trail. Your brake.
Three controls separate ergonomics from power delivery, so one adjustment never forces a compromise somewhere else.
Bite point
Set the contact point independently with a 2 mm hex key for earlier or later engagement.
Leverage ratio
Shift the lever pivot to choose faster power or a longer, more progressive stroke.
Heat management
Four pistons. Two materials. One consistent bite.
Titanium brings strength with lower mass. Ceramic insulation controls heat transfer into the fluid. Together they keep the lever feel stable through long, high-load descents.
7075-T6CNC caliper body
TP-40Sintered pad compound
Product details
The numbers behind the feel.
A complete front and rear system engineered around gravity riding, heavy bikes and repeatable performance.
- Intended use
- Enduro, Downhill, All-Mountain, E-bike, Dirtbike
- Master cylinder
- Axial · CNC 7075-T6 aluminium
- Caliper
- CNC 7075-T6 aluminium · post mount
- Pistons
- 4 × 17 mm titanium + ceramic
- Adjustments
- Reach, bite point, leverage ratio
- Brake pads
- TP-40 sintered metallic
- Hose
- 5 mm OD · 2.2 mm bore · braided option
- Weight
- 639 g front + rear with hoses
- Fluid
- Mineral oil
- Rotor compatibility
- 180–223 mm · 2.0–2.5 mm thickness
Service
Set it up. Keep it sharp.
The essential resources for installation, adjustment and routine maintenance.
Independent review
“The Lewis LHT Ultimates are no joke. They offer effective lever adjustments and are up to the required tasks of gravity riding.”
Matt Beer · Pinkbike
